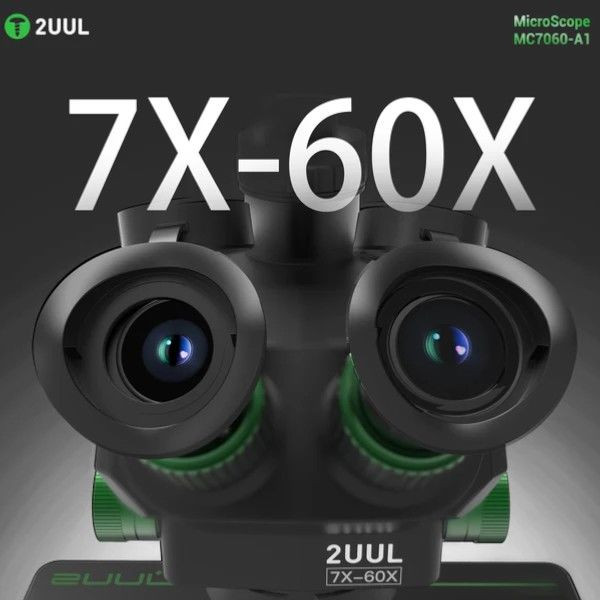

The 2UUL MC7060-A1 Trinocular Microscope is a professional-grade optical solution engineered specifically for high-precision electronics repair, PCB micro-soldering, and intricate industrial inspections. Combining a powerful magnification range with an ergonomic, camera-ready design, it is an essential tool for technicians working on modern smartphone motherboards and micro-components.
Key Features
- 7X to 60X Continuous Zoom:
Experience seamless magnification transitions. With a 0.7X–6.0X objective zoom, you can switch from a wide-area scan (31.4mm field of view) to extreme close-up detail (3.7mm field of view) for inspecting IC chips and solder joints without losing focus. - Superior Optics:
Equipped with WF10X/23mm high-eye-point, wide-field eyepieces featuring anti-reflective coatings. This design provides a larger, clearer viewing area and reduces eye fatigue during long repair sessions. - Trinocular Camera Interface:
The dedicated phototube and 0.5 CTV adapter allow for simultaneous binocular viewing and digital output. Connect a camera or CCD to record your work, stream live video for training, or document complex repairs. - Shadow-Free Illumination:
Comes with an adjustable 72-LED ring lamp that provides bright, cool-white (6000K) lighting. The dimmable interface ensures true color rendering and eliminates shadows, which is critical for identifying micro-cracks and bridge solder. - Ergonomic and Robust Build:
The microscope features a sturdy, vibration-resistant large base (38x26cm) that provides a stable workspace. Dual diopter adjustments on the eyepieces accommodate individual vision needs for a comfortable, fatigue-free experience.
Technical Specifications
Model: MC7060-A1
Magnification Range: 7X – 60X
Eyepieces: WF10X/23mm (Wide Field, High Eye Point)
Objective Zoom: 0.7X – 6.0X
Working Distance: 120mm
Base Dimensions: 38cm x 26cm
Weight: ~4.6kg (Net) / 5.7kg (Gross)
Compatibility: Industry-standard cameras and CCDs via 0.5 CTV interface
What’s in the Box?
1 x 2UUL MC7060-A1 Microscope Host
2 x WF10X/23mm High Eye Point Eyepieces
1 x 0.5 CTV Camera Adapter
1 x Adjustable 72-LED Ring Lamp
1 x Precision Large Base & Column
2 x Rubber Eyepiece Cushions
1 x Dustproof Scope Cap & Dust Cover
