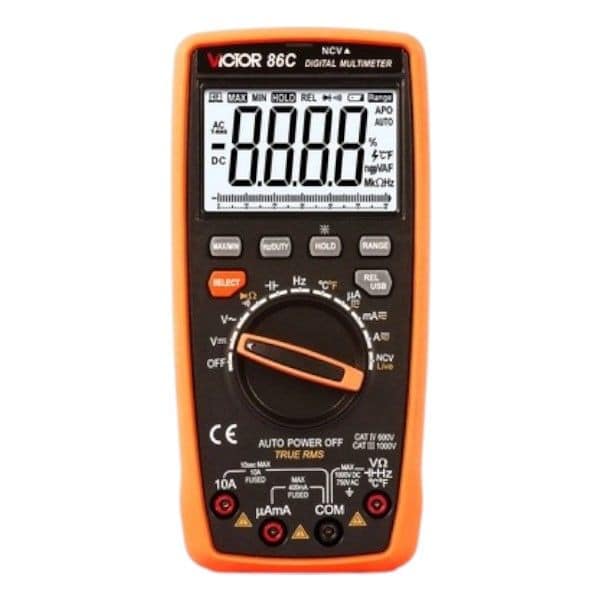

Victor 86C – Digital Multimeter

Out of stock

Email when stock available

SKU: TL MULTIMETER VICTOR 86C Categories: , ,

New type holster, streamline design，
USB interface can connect to computer ,Large LCD analog bar graph display、
Unit symbol display，make the reading clearly, display.
Metallic screen board with strong anti-magnetic and anti-interferential function
Auto power off and alarm when no usage for 15 Minutes.

Basic Function Range Basic accuracy
DC Voltage 400mV/4V/40V/400V/1000V ±(0.5%+4)
AC Voltage 400mV/4V/40V/400V/750V ±(0.8%+10)
DC Current 400uA/4000uA /40mA/400mA/4A/10A ±(1.0%+10)
AC Current 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+4)
Temperature (-20 ~ 1000)℃ ±(1.0%+5)
Celsius (0~1832)℉ ±(1.5%+15)



Special Function
Diode test √
Transistor test √
Continuity buzzer √
Low battery indication √
Data hold √
Auto power off √
Bar graph display 41segment(30time/s)
RS232 interface jack √
Max./ Min √
Function protection √
Shockproof protection √
Frequency /duty cycle 0.1%~99.9%
Input impedance 10MΩ
Sampling rate 3 times/s
AC Frequency response (40-400)Hz
Operation way Auto range
Max. display 3999
LCD Size 70×50mm
Power 3V (1.5V×2)



Weight 0.3 lbs
Dimensions 1 × 1 × 1 in
Compatible Model

Victor/VC890C
Compatible Brand

CPW
Product Code

6177
